Top 5 causes of centrifugal pump vibration and How to fix them

Excessive pump vibration is an early warning sign of catastrophic failure. The top 5 causes are shaft misalignment, impeller imbalance, cavitation, bearing wear, and bent shafts. To fix vibration quickly, engineers should first check the pump shaft alignment using a laser tool, ensure the NPSHa is sufficient to prevent cavitation, and inspect the impeller for accumulated debris or wear.

When a horizontal centrifugal pump begins to vibrate beyond its acceptable limits (typically measured in inches per second or mm/s), it will rapidly destroy mechanical seals and bearings. Addressing vibration early saves thousands of dollars in unplanned downtime. Here is our expert diagnostic guide.

1.Shaft Misalignment (The #1 Culprit)

If the motor shaft and pump shaft are not perfectly aligned, the coupling will bind, causing a distinct radial vibration.

● The Fix: Never rely on a straightedge. Use a precision laser alignment tool to correct both vertical and horizontal offset. Always re-check alignment after the pump reaches its standard operating temperature due to thermal expansion.

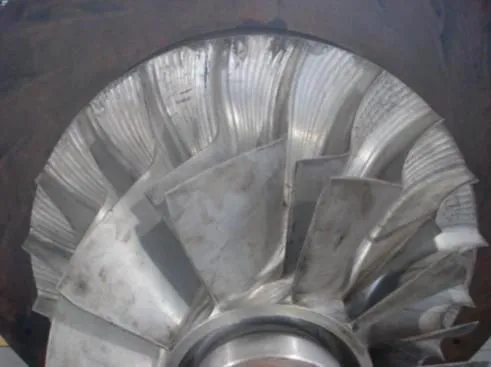

2. Impeller Imbalance

Impellers can become unbalanced for two reasons: manufacturing defects or operational wear. In wastewater applications, rags or solid debris can stick to one side of the impeller, causing a massive weight imbalance.

● The Fix: Open the casing and physically clean the impeller. If pumping abrasive fluids, check for uneven erosion and replace the impeller if necessary.

3. Pump Cavitation

If the vibration sounds like rocks passing through the casing, you are experiencing cavitation. This happens when the suction pressure drops too low, causing the fluid to boil and collapse violently.

● The Fix: Clean the suction strainer, increase the fluid level in the supply tank, or reduce the fluid temperature to lower its vapor pressure.

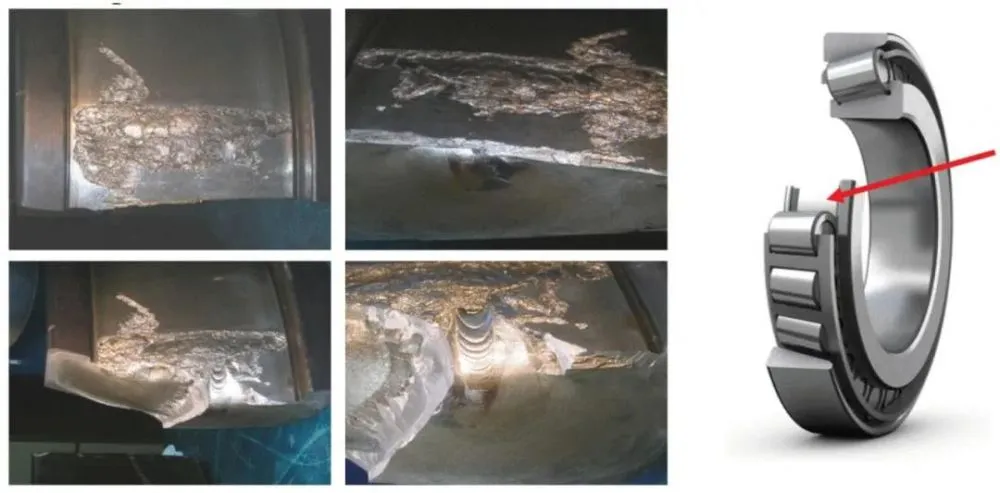

4. Bearing Wear and Failure

Worn bearings will produce high-frequency vibrations and a distinct whining noise. This is usually a secondary failure caused by misalignment or poor lubrication.

● The Fix: Drain the bearing housing, check for water contamination (which destroys the oil's viscosity), and replace the bearings and lip seals immediately.

5. Pipe Strain

If the suction or discharge piping is not properly supported, the heavy pipes will rest their weight directly on the pump casing, twisting it out of alignment.

● The Fix: Ensure all industrial pump maintenance protocols include checking pipe hangers and expansion joints. The pump flange should never bear the weight of the piping system.
